Overview

Basic Info.

Model NO.	HD-60V30A16-24ch
Type	Lithium Battery Pack,Lead-Acid Battery Pack,Nickel
Test Region	All
Application	Lithium Battery Pack,Lead-Acid Battery Pack,Nickel
Customized	Customized
Input Power Supply	AC380V
Chanrging Voltage	0V~60V
Discharging Voltage	6V~60V
Voltage Resolution	1mv
Current Resolution	1mA
Transport Package	Wooden Case
Specification	686mm X 730mm X 1470mm
Trademark	HONGDIAN
Origin	China
HS Code	9030899090
Production Capacity	1000/Year

Product Description

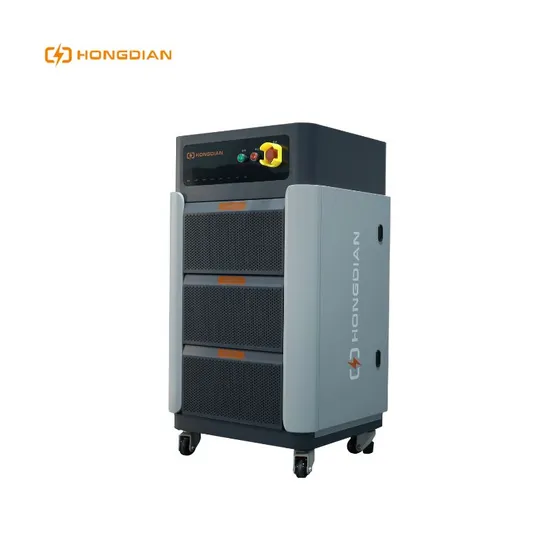

Introducing our Multi-Function Battery Pack Testing System, an advanced solution for comprehensive assessments of lithium battery packs. This sophisticated testing system incorporates cutting-edge technology to serve as a Lithium Battery Pack Capacity Tester, providing a versatile and precise tool for evaluating various aspects of battery performance.

Product images appearance and channnels are for reference only and can be customized according to customer needs
Generally, different devices size are selected based on the customer's total power or the range of the battery pack voltage and Ampere

AC Input Parameters

DC output parameters

Step Function Features / Function Features of Operation Steps Protection Functions

Versatile Multi-Functionality: The testing system is equipped with multiple functions, serving as an all-in-one solution for evaluating the capacity, voltage, internal resistance, and overall performance of lithium battery packs. Advanced Technology: Incorporating state-of-the-art technology, the system ensures accurate and reliable measurements, delivering precise data critical for in-depth analysis and optimization of battery pack performance. Efficient Testing Process: With its multi-function capabilities, the system enables efficient and rapid testing procedures, streamlining the assessment of diverse parameters within lithium battery packs. User-Friendly Interface: Designed with user convenience in mind, the system features an intuitive interface, allowing both technicians and users with varying levels of expertise to navigate and operate the testing functions seamlessly. Elevate your battery testing capabilities with our Multi-Function Battery Pack Testing System-a versatile and advanced tool for in-depth assessments of lithium battery pack performance.

Packing and shipping
1.Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2.Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
3.Responsible for the damage during the shipping process will change the damage part for you for free.
4.Supply with the suitable voltage input and source plug according to your country requirements.

Product Description Product Parameters

Item	Technical Parameters
Wiring Method	AC380V Three-Phase Five-Wire System
Input Power Supply	AC380V
Power Factor	≥99%(full load)
THDi	≤5%(full load)
Maximum feedback efficiency	≥92%(full load)

Item	Technical Parameters
Voltage range	Charging Voltage: 0V ~ 60V Discharging Voltage: 6V ~ 60V
Voltage Accuracy	±0.05%FS
Voltage Resolution	1mV
Current Range	0 ~ 30A
Current Accuracy	±0.05%FS
Current Resolution	1mA
Current Response Time	10ms(10%FS ~ 90%FS)
Charge/Discharge Conversion Time	20ms(-90%FS ~ 90%FS)
Channel Control Mode	All channels can be independently controlled.
Auxiliary channels	Each channel is equipped with an auxiliary temperature channel.

Item	Technical Parameters
AC-Side Protection	AC Grid Voltage Over/Under Voltage Protection, Surge Protection, Anti-Islanding Protection, Over/Under Frequency Protection, Hardware Overtemperature Protection, Self-Test Protection, etc.
DC-Side Protection	Bus Over/Under Voltage Protection, Hardware Overtemperature Protection, Battery Channel Line Reverse Connection Protection, etc.
Battery-Side Comprehensive Protection	Battery pack total voltage upper/lower limit protection, battery cell voltage upper/lower limit protection, battery temperature upper/lower limit protection, battery charge/discharge current upper limit protection, battery capacity upper/lower limit protection, BMS communication loss protection, network disconnection protection, etc.
Ingress Protection (IP) Rating	IP22
Operating Temperature Range	0ºC~ 45ºC
Cooling Method	Forced Air Cooling
Sound Level	≤75dB
