Overview

Basic Info.

Model NO.	MVTH-125DW
Certification	CE
Warranty	1 Year
City	Dongguan, Guangdong
Uses	Battery Pack Composite Salt-Spray Tester
Purpose	Step-in Comprehensive Testing
Customize	Acceptable
Transport Package	Wooden Box
Specification	250*250*200cm
Trademark	MENTEK
Origin	China
HS Code	8479899990
Production Capacity	1000PCS/1year

Product Description

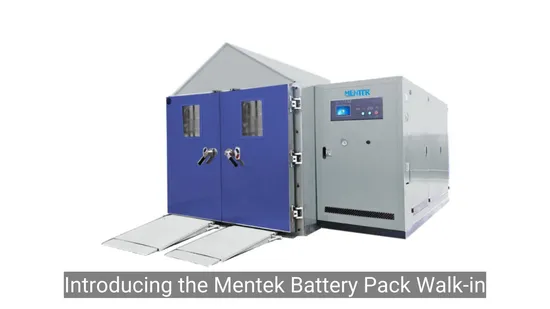

Battery Pack Walk-in Composite Salt Fog Test Chamber Salt-Spray and Corrosion Tester

Relevant standard test requirements
1.1 The test object is a battery pack or system.
1.2 Refer to GB/T2423.18 severe level (5) carry out four experimental cycles.
1.3 The salt solution is configured with sodium oxide (chemically pure, analytically pure) and distilled water or deionized water, and its concentration is (5±0.1)% (mass score) , (20±2)ºC. The PH value measured below is between 6.5 and 7.2.
1.4 Put the test object into the smoke box and spray salt mist at 5ºC~35ºC for 2h. After spraying, transfer the test object to the wet and hot tank for 20-22h. The temperature is
(40±2)ºC, the relative humidity is (93±3)%, forming a cycle. Repeat one cycle three times, and then test the standard atmospheric conditions (the temperature is 23ºC±2ºC. The relative humidity is 45%~55%) and stored for 3d, forming a cycle, and repeating four cycle tests.
1.5 Requirements: No leakage of the battery pack or system, cracked shell, fire and explosion phenomenon.

Main Parameters

Product Description

Name of the equipment	Compound salt spray test chamber
Model	MHY-1600M	MHY-012M
Inner box size (W*H*D) mm	1000*1000*1600 (Excluding the spire)	3000*2000*2000 (Excluding the spire)
Temperature range	0ºC~60ºC
Temperature fluctuation	±0.5ºC (When it is empty)
Temperature uniformity	±2ºC (When there is no load)
Salt water spray amount	1 to 2mL/ eight cm²1Hr(Collect for at least 16 hours,take its average)
Spray pressure	1kg/cm² It is adjusted in two sections, and the first time the compressed air adjust to 2kg/cm². Enter the saturated barrel for heating, the the second adjustment is 1kg/cm²

Laboratory temperature range	0ºC~60ºC
Humidity accuracy	Temperature resolution: 0.1ºC
Humidity range	20%-98%RH
Temperature fluctuation	±3%RH
Liquid medicine PH.Value	Neutral 6.0~7.0 Acid 3.0~3.1
Spray solution PH.Value	Neutral 6.5~7.2 Acid 3.1~3.3
Time range	1S~9999H can be set arbitrarily

Control method

Device host and remote PC control, device body and console. Separate, can be controlled remotely, and the operator should stay away from the test area. The longest long-distance distance can reach 50 meters, and the standard line length is 10m. It can effectively protect the safety of testers.
